Product Description
price per sheet
| Longitudinal wires | Cross wires | |||||||
| B.S Reference |
Size | Pitch | Area | Size | Pitch | Area | Kg/m² | Kg/sheet |
| mm | mm | mm²/m | mm | mm | mm²/m | |||
| B503 | 8 | 100 | 503 | 8 | 200 | 252 | 5.93 | 68.31 |
B503 MESH 2.4M X 4.8M
£99.60

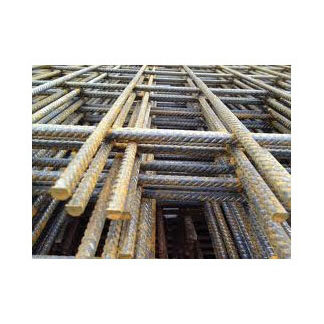

B503 mesh is known as ‘Structural Mesh’, for structural applications as defined by your structural engineer or architect.
8mm wires are spaced to create 200mm x 100mm apertures.
Positioning of the mesh fabric within a slab is vital. So using plastic spacers, or other steel or concrete positioning structures is imperative.
When using multiple sheets over a large area, ensure that all sheets overlap by at least 600mm, and are tied together using recommended methods.
